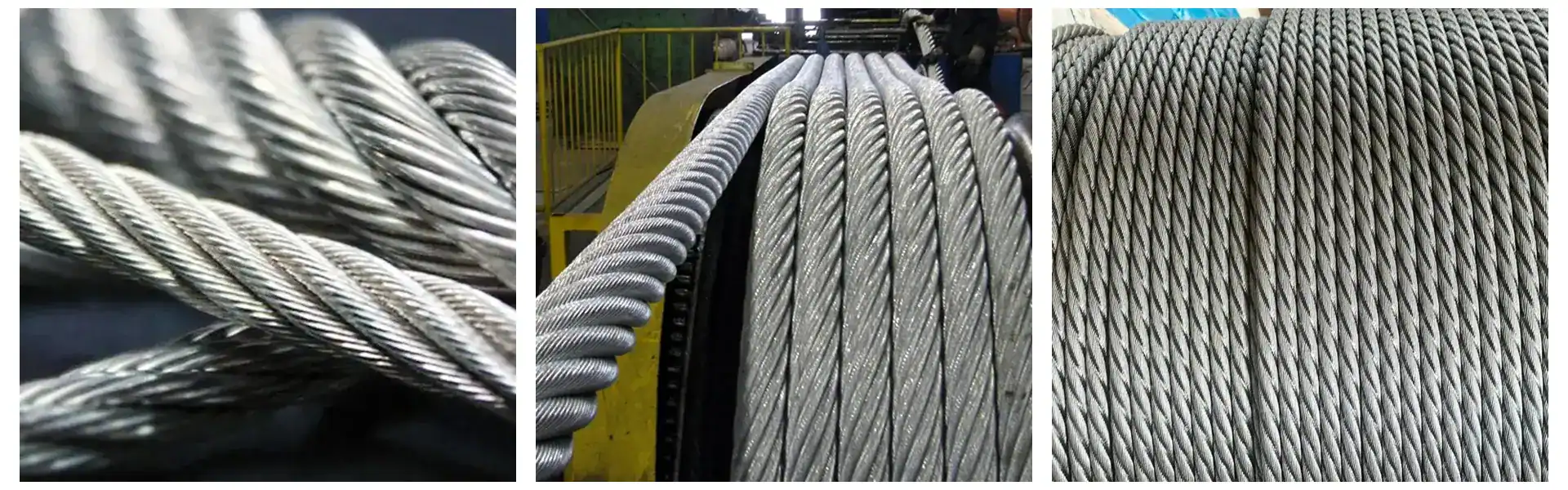

Marine Wire Rope
High-Performance Marine Wire Rope for Offshore and Marine Operations
Marine wire rope is widely used in offshore engineering, ship mooring, towing, lifting, and winch systems where strength, durability, and reliability are essential. Designed for demanding environments, it delivers consistent performance under heavy loads while resisting wear in harsh marine conditions.
NYBON Marine supplies a wide range of steel wire ropes for commercial vessels, offshore platforms, shipyards and marine engineering projects. We offer customized solutions to match different equipment, working loads, and application requirements.
What Is Marine Wire Rope?

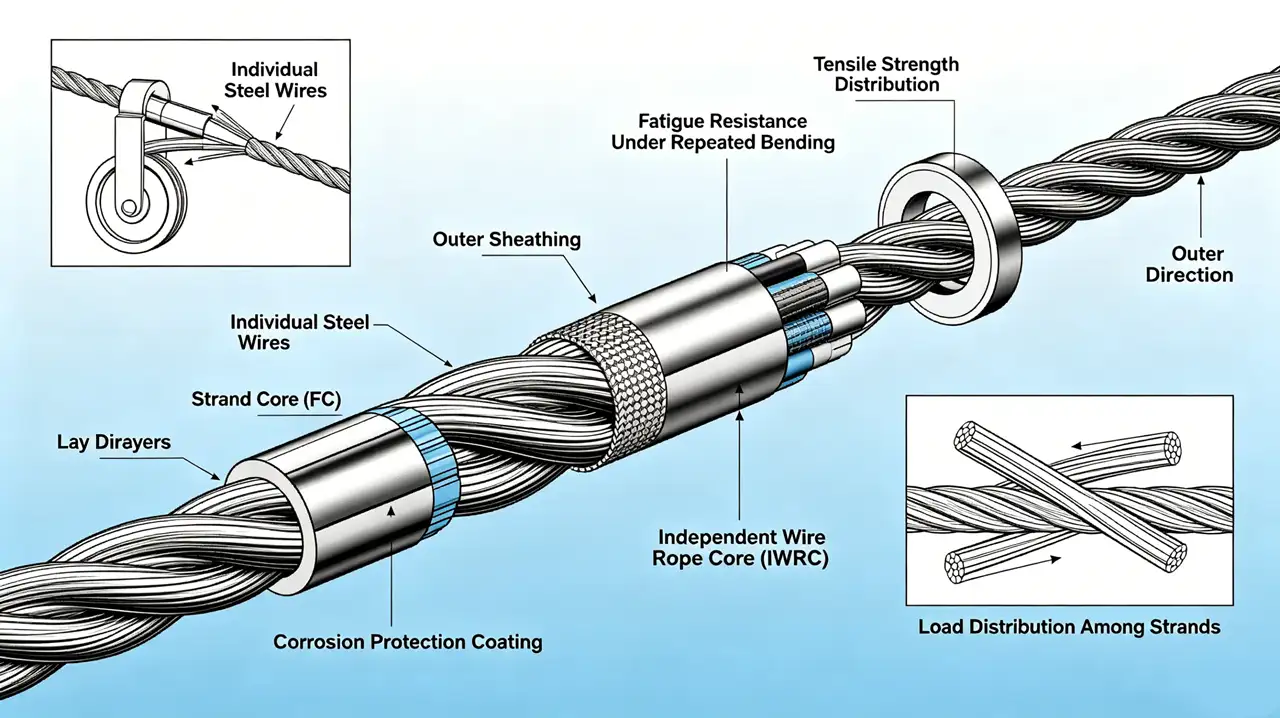

Marine wire rope is a high-strength steel rope manufactured by twisting multiple strands around a core. Compared with synthetic ropes, it offers excellent tensile strength, abrasion resistance and dimensional stability, making it ideal for heavy-duty marine applications.It is commonly used with:

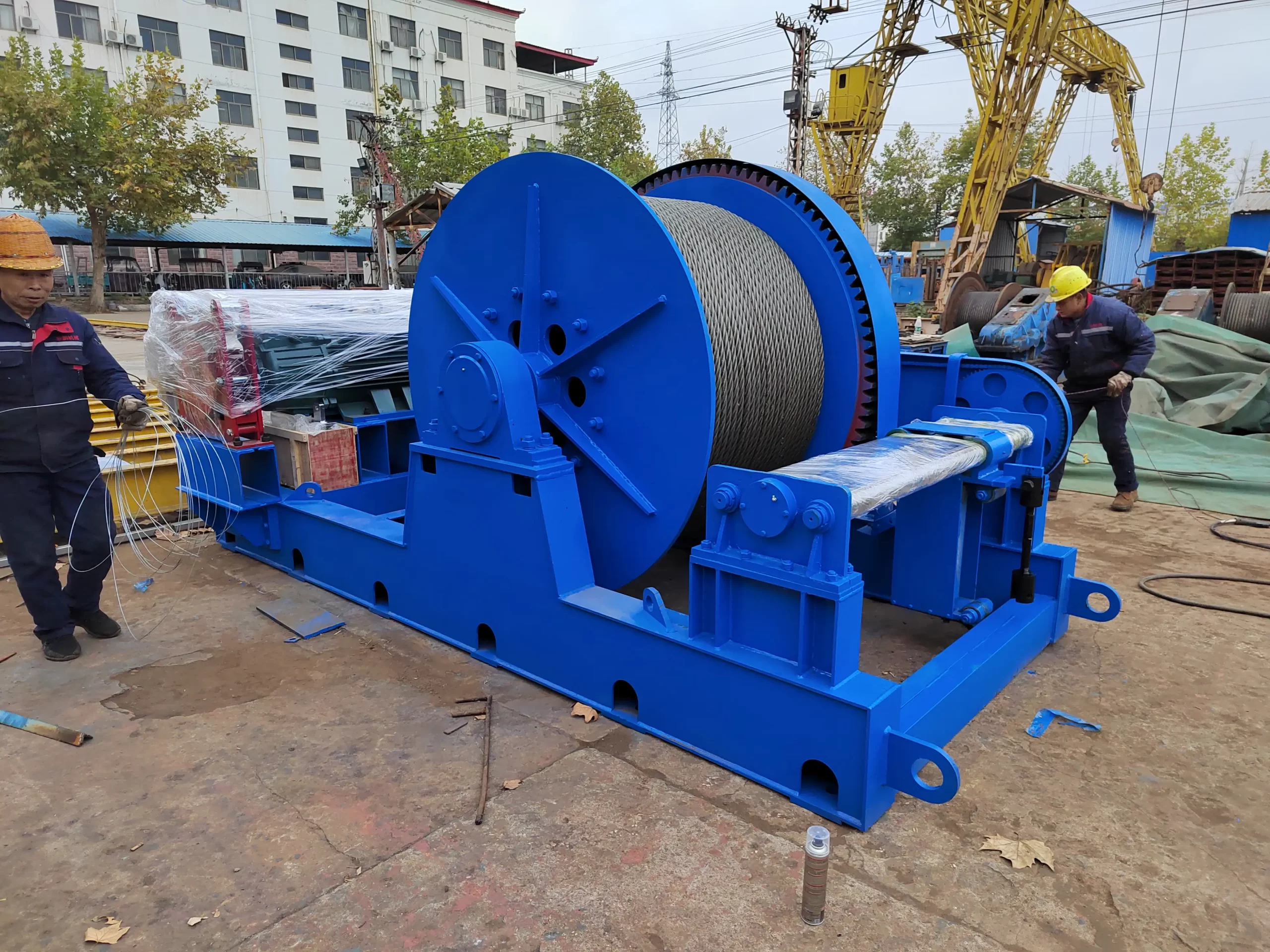

- Marine Winches
- Mooring Winches
- Towing Winches
- Anchor Handling Winches
- Offshore Cranes
- Deck Machinery
Relevant Standards
Our marine wire ropes can be manufactured in accordance with internationally recognized standards and project specifications. Products are available for applications requiring classification society approval and can be supplied to meet customer-specific technical requirements for offshore and marine operations.
Key Features
Designed for demanding working conditions.
Advantages
- High breaking strength
- Excellent abrasion resistance
- Stable construction
- Flexible operation
- Long service life
- Suitable for severe marine environments
Common Applications
Mooring Systems
Provides secure vessel mooring at ports, terminals, and offshore facilities.
Towing Operations
Used on tugboats and towing winches to handle heavy towing loads.
Offshore Engineering
Supports offshore construction, platform maintenance, and marine lifting.
Anchor Handling
Designed for anchor handling vessels and offshore support operations.
Marine Cranes
Suitable for lifting equipment on ships and offshore platforms.
Available Rope Constructions
Different constructions are suitable for different applications.
6×19—General-purpose wire rope with good flexibility.
6×36—Improved flexibility for winch applications.
8×36—Designed for repeated bending and heavy-duty service.
Rotation-Resistant Rope—Recommended for lifting operations requiring stable load handling.
Technical Specifications
| Rope Diameter | 8–120 mm |
|---|---|
| Construction | 6×19 / 6×36 / 8×36 / Rotation Resistant |
| Core Type | Fiber Core (FC) / Independent Wire Rope Core (IWRC) |
| Tensile Grade | 1770 / 1960 / 2160 MPa |
| Material | High Strength Alloy Steel |
| Breaking Load | 40–900 kN (Depending on Size) |
| Surface Finish | Bright / Galvanized |
| Rope Length | Up to 2,000 m per Reel |
Industry Insights: Choosing the Right Wire Rope
Selecting the correct wire rope involves more than matching the breaking load. Rope construction, core type, bending performance, and operating conditions all influence service life and safety.
For example, ropes used on towing winches require excellent fatigue resistance under repeated bending, while offshore lifting applications often require rotation-resistant constructions to improve load stability. Choosing the right rope for each application helps reduce maintenance costs and extend equipment life.
For other marine outfittings:
Just For Your Trust
How to Select the Right Marine Wire Rope
Customized Wire Rope Solutions
NYBON Marine supplies customized wire ropes based on:
- Diameter
- Rope construction
- Core type
- Tensile grade
- Surface finish
- Rope length
- End terminations
We support OEM projects for marine equipment manufacturers, shipyards and offshore contractors.
Every wire rope is produced using high-quality steel wire and undergoes strict quality inspections throughout the manufacturing process.
Quality control includes:
- Raw material inspection
- Wire drawing inspection
- Strand formation inspection
- Diameter measurement
- Breaking force testing
- Final inspection before shipment
Frequently Asked Questions
What is the difference between marine wire rope and synthetic rope?
Marine wire rope offers higher strength, better abrasion resistance, and improved dimensional stability, while synthetic rope is lighter and easier to handle.
Which rope construction should I choose?
It depends on the application. General mooring, towing, lifting and offshore operations often require different constructions.
Can wire rope be supplied with a galvanized finish?
Yes. Bright and galvanized wire ropes are both available depending on the operating environment.
Do you provide customized rope assemblies?
Yes. We can supply ropes with sockets, thimbles, hooks, or other end fittings upon request.
Do you support OEM production?
Yes. OEM manufacturing is available according to customer specifications.
