Marine Waterfall Winch
Heavy-Duty Waterfall Winches for Marine & Offshore Applications
A waterfall winch is a specialized marine winch designed for applications requiring large rope capacity, controlled deployment, and reliable deck operations.
NYBON Marine manufactures waterfall winches for offshore vessels, marine engineering projects, and special-purpose ships.
With multi-layer rope storage, strong pulling performance and flexible drive options, our waterfall winches provide reliable solutions for demanding marine environments.
What Is a Waterfall Winch?
A waterfall winch is a type of marine winch designed with multiple rope storage layers arranged vertically or in a stepped configuration.
Compared with conventional winches, waterfall winches provide:
- Larger rope storage capacity
- Compact installation space
- Efficient rope management
- Reliable offshore operation
They are suitable for applications where long lengths of wire rope or synthetic rope are required.

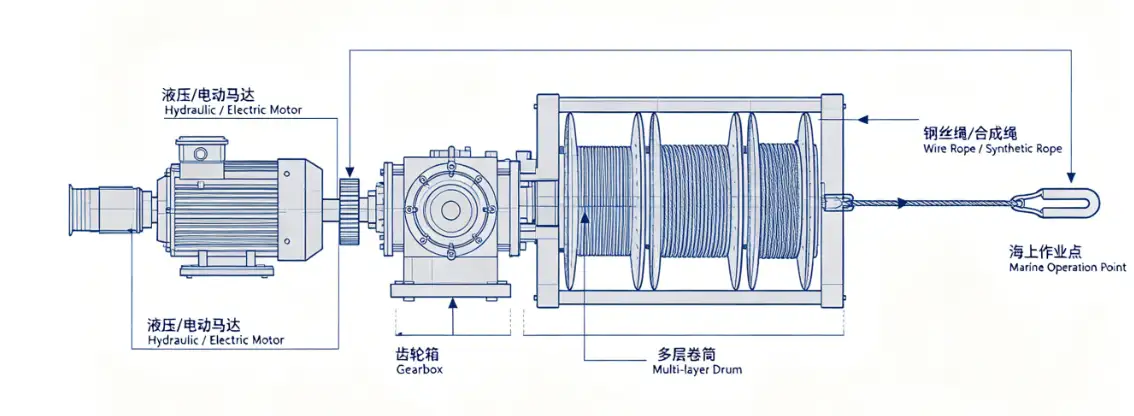

How Does a Waterfall Winch Work?
A waterfall winch works by winding and releasing wire rope through a specially designed multi-layer drum arrangement.
Typical structure:
Hydraulic / Electric Motor→Gearbox→Multi-layer Drum→Wire Rope / Synthetic Rope→Marine Operation Point
Operation process:
- Motor drives the gearbox.
- Drum rotates to release or recover rope.
- Rope is stored in multiple layers.
- Brake system controls rope movement.
Main Features of Waterfall Winch
Large Rope Storage Capacity
The multi-layer drum design allows longer rope storage compared with traditional winches. Suitable for: Offshore operations, deep-water applications, Marine engineering projects
Compact Installation Design
The waterfall structure helps save deck space while maintaining large rope capacity.
Reliable Rope Management
Designed to improve:
- Rope arrangement
- Operating efficiency
- Equipment reliability
Heavy-Duty Construction
Manufactured with:
- Strong steel structure
- Marine-grade components
- Corrosion protection
Waterfall Winch Applications
Offshore Engineering—Used for:
-
Offshore construction
-
Platform support
-
Marine installation
Cable Laying Vessels
Suitable for:
-
Cable deployment
-
Marine cable handling
Research Vessels
Used for:
-
Deep water operations
-
Equipment deployment
Special Marine Vessels
Applications include:
-
-
Engineering vessels
-
Workboats
-
Support vessels
-
Types of Waterfall Winches

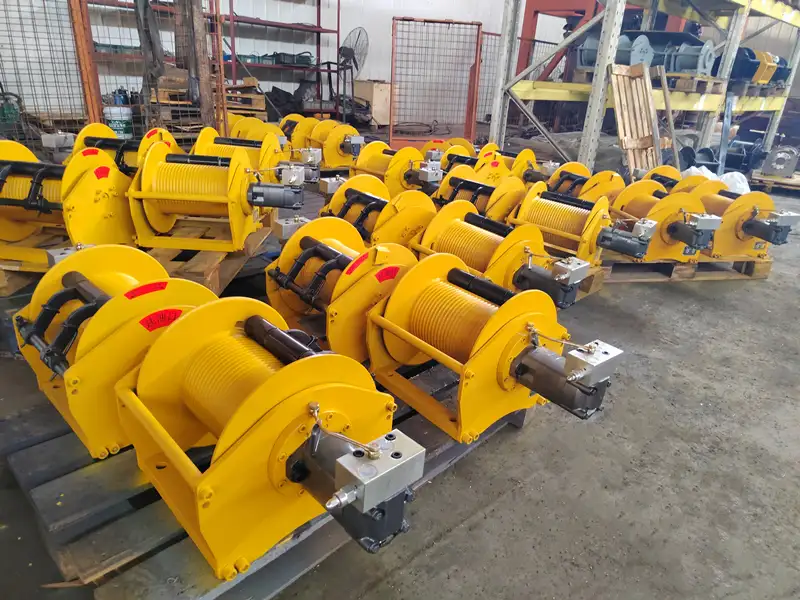

Hydraulic Waterfall Winch
Recommended for: Offshore projects & Heavy-duty operations
Advantages: High torque output, Smooth speed control, Continuous operation capability

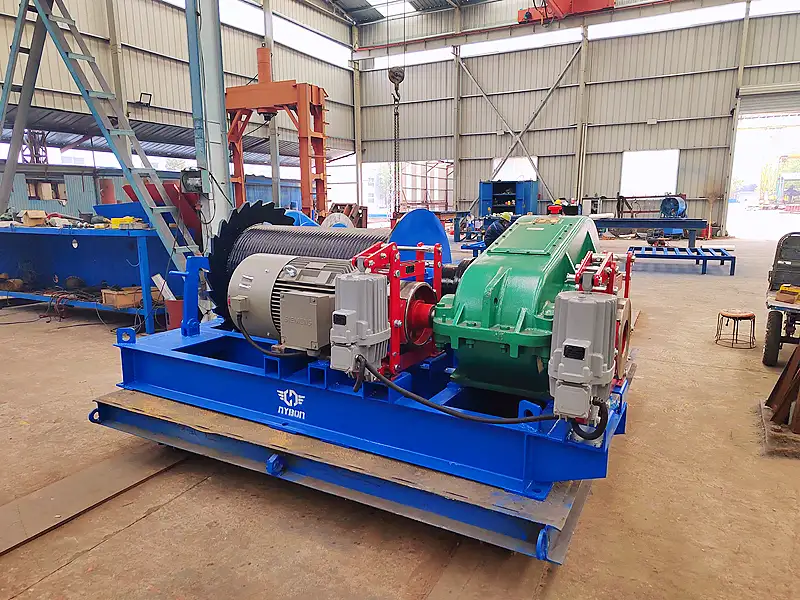

Electric Waterfall Winch
Suitable for: Commercial vessels, Controlled marine operations
Advantages: Easy maintenance, Efficient operation
Technical Specifications of Waterfall Winch
The following specifications represent typical ranges. Customized designs are available according to rope requirements and vessel applications.
| Rated Pulling Capacity | 5–200 tons |
|---|---|
| Wire Rope Capacity | 500–5000 m |
| Wire Rope Diameter | 20–100 mm |
| Drum Configuration | Multi-layer Drum |
| Line Speed | 5–30 m/min |
| Motor Power | 10–250 kW |
| Control System | Local / Remote / PLC |
Just For Your Trust
How to Select the Right Waterfall Winch?
Customized Waterfall Winch Solutions
NYBON Marine provides customized waterfall winches according to:
- Rope length
- Pulling capacity
- Drum size
- Vessel structure
- Drive system
- Control requirements
Our engineers work with shipyards and marine contractors to develop suitable solutions for different applications.
Every waterfall winch is manufactured under strict quality procedures.
Quality control includes:
- Material inspection
- Welding inspection
- Machining inspection
- Drum inspection
- Gearbox testing
- Brake testing
- Load testing
From Design to Delivery
Our towing winch project process:
- Customer requirement analysis
- Technical solution design
- Drawing confirmation
- Manufacturing
- Factory testing
- Surface treatment
- Packaging and shipment
Why Choose NYBON Marine Waterfall Winches?
Professional Marine Equipment Manufacturer
Focused on marine winches and deck machinery.
Customized Engineering Capability
Designed according to actual project requirements.
Heavy-Duty Performance
Suitable for demanding offshore environments.
Complete Marine Solutions
Supporting customers with: Marine winches, Marine fittings, Ship equipment solutions
Frequently Asked Questions
What is a waterfall winch used for?
A waterfall winch is used for marine applications requiring large rope storage capacity and controlled rope deployment.
Why choose a waterfall winch instead of a standard winch?
A waterfall winch provides greater rope capacity while saving deck installation space.
Where are waterfall winches commonly installed?
They are commonly used on offshore vessels, cable vessels, research vessels, and marine engineering ships.
Can waterfall winches use hydraulic drive?
Yes. Hydraulic drive systems are commonly selected for heavy-duty offshore applications.
Can the waterfall winch be customized?
Yes. Rope capacity, pulling force, drum design, and control systems can be customized.
