Marine Anchor Winch
Reliable Anchor Winches for Safe Vessel Anchoring
An anchor winch is one of the most important pieces of deck equipment on a vessel. It is designed to deploy, retrieve and secure anchors safely and efficiently under various marine conditions.

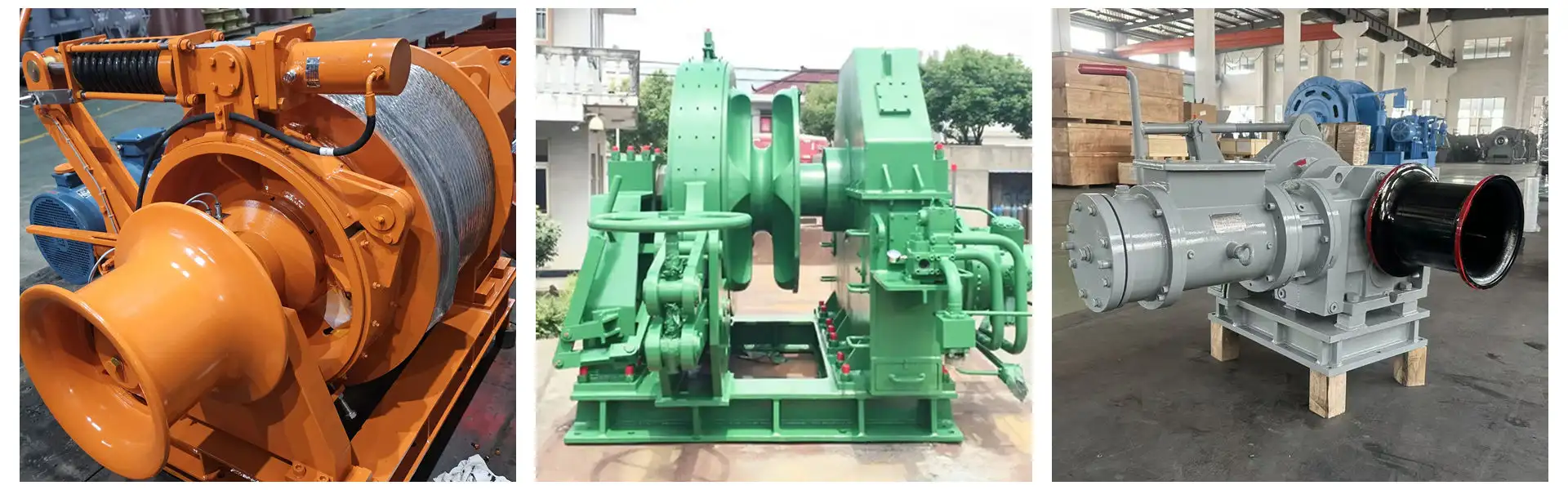

NYBON Marine manufactures customized anchor winches for commercial vessels, offshore support vessels, workboats and other marine applications. Our anchor winches are available with electric or hydraulic drive systems and can be designed according to different classification society requirements and customer specifications.
Whether you need a standard solution or a fully customized system, our engineering team can help you select the right anchor winch for your project.
What Is an Anchor Winch?
An anchor winch is a mechanical system used to lower, recover and secure a vessel’s anchor and anchor chain. It provides the pulling force required to handle the anchor safely while ensuring smooth operation during anchoring and weighing anchor.
Modern marine anchor winches are widely used on:
- Cargo vessels
- Container ships
- Offshore support vessels
- Tugboats
- Passenger ferries
- Government vessels
- Research vessels
A properly selected anchor winch improves operational safety, reduces crew workload and ensures reliable anchoring performance.

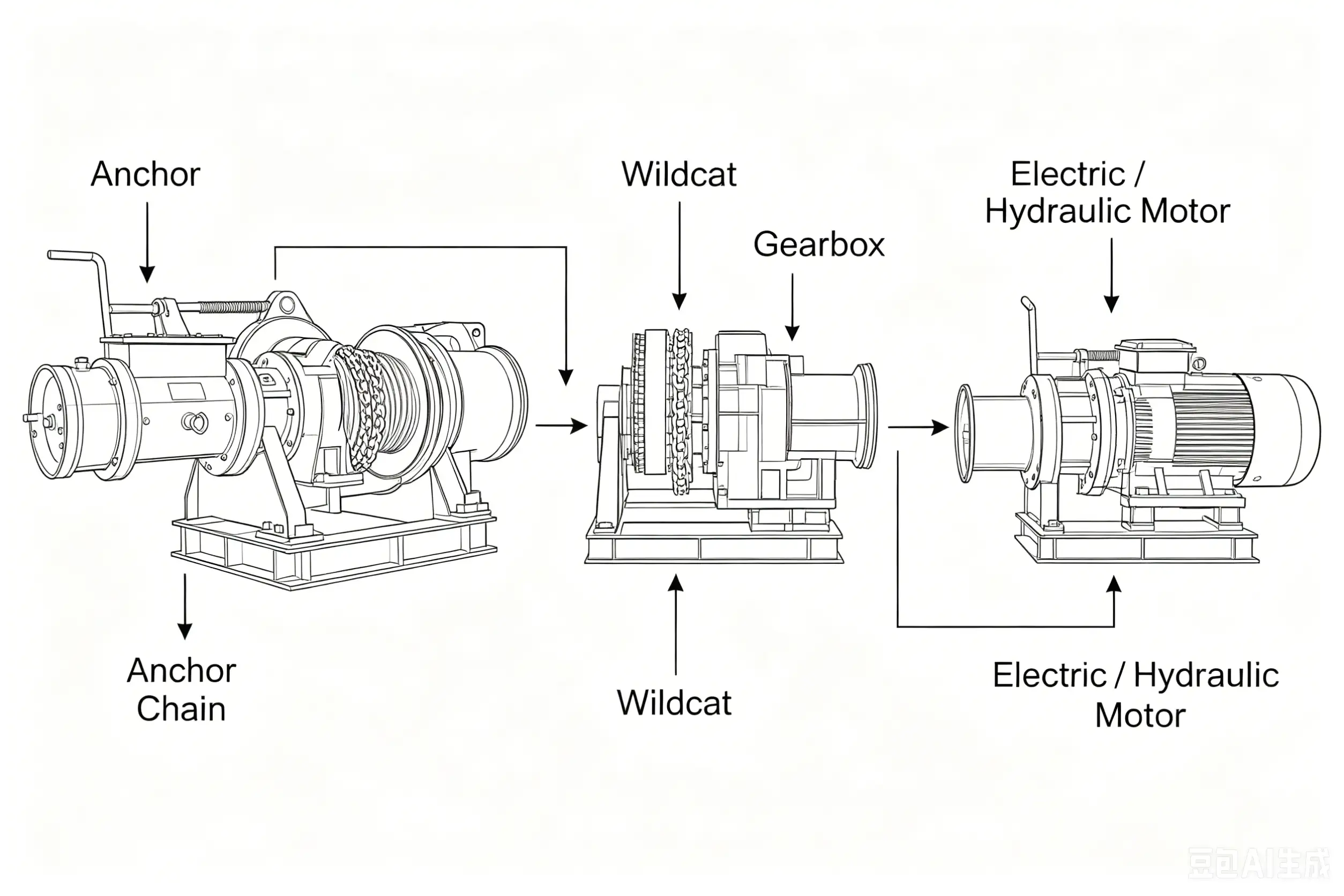

How Does an Anchor Winch Work?
A marine anchor winch operates through a drive system that rotates the wildcat (gypsy wheel) to control the anchor chain.Typical operating process:
- Release the brake.
- Lower the anchor at a controlled speed.
- Stop at the required chain length.
- Lock the brake.
- Retrieve the anchor using the motor.
A reliable anchor winch ensures smooth, safe and efficient anchoring operations.
Main Components of an Anchor Winch
Wildcat (Gypsy Wheel)
Engages the anchor chain securely and ensures smooth chain handling.
Winch Drum
Used for rope handling when combined anchoring and mooring functions are required.
Brake System
Provides secure holding and safe operation during anchoring.

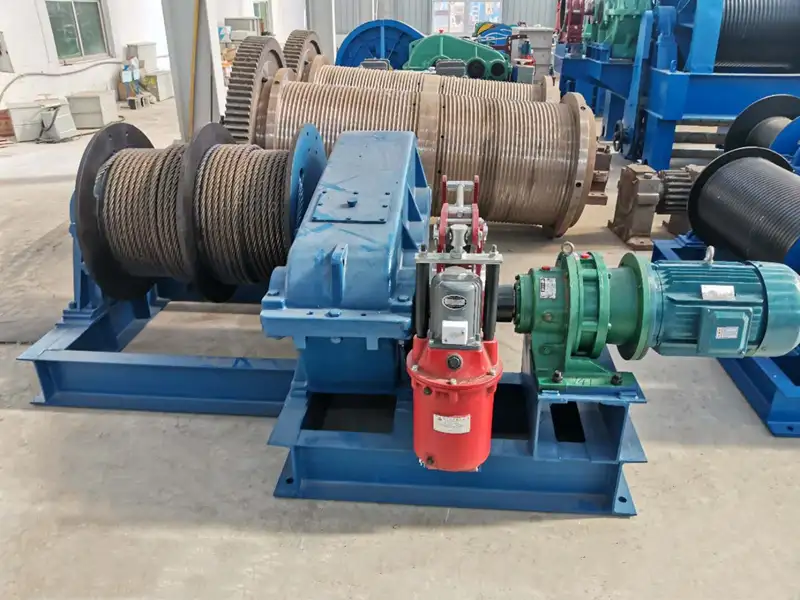

Gearbox
Transfers power efficiently from the motor to the winch.
Electric or Hydraulic Motor
Available according to vessel power systems and operating conditions.
Anchor Winch Applications
Anchor winches are widely used in different marine industries.
Commercial Cargo Ships
Reliable anchoring for international shipping.
Tugboats
Frequent anchoring during harbor operations.
Offshore Support Vessels
Heavy-duty anchoring under demanding marine environments.
Passenger Ferries
Fast and reliable anchoring during scheduled operations.
Government & Research Vessels
Customized configurations for specialized missions.
Types of Anchor Winches
Electric Anchor Winch—Suitable for: Cargo ships, Passenger vessels, Coastal vessels
Advantages: Easy operation, Low maintenance, Cost-effective
Hydraulic Anchor Winch—Recommended for: Offshore vessels, Tugboats, Heavy-duty operations
Advantages: High pulling force, Continuous duty, Excellent reliability
Combines anchoring and mooring functions into one compact unit.
Technical Specifications
| Pulling Capacity | 5–200 tons |
|---|---|
| Chain Size | 16–100 mm |
| Rope Capacity | 50–1000 m |
| Drum Speed | 5–15 m/min |
| Drive Type | Electric / Hydraulic |
| Motor Power | Single / Double / Waterfall |
| Control | 5–150 kW |
| Control System | Local Control / Remote Control / PLC |
Just For Your Trust
How to Select the Right Anchor Winch
Typical Selection Reference
| Vessel Type | Recommended Anchor Winch |
|---|---|
| Tugboat | Hydraulic Anchor Winch |
| Cargo Vessel | Electric Anchor Winch |
| Offshore Vessel | Hydraulic Anchor Winch |
| Passenger Ferry | Electric Anchor Winch |
| Research Vessel | Customized Anchor Winch |
Why Choose a Customized Anchor Winch?
No two vessels are exactly the same.
NYBON Marine provides customized anchor winches based on:
- Pulling capacity
- Anchor chain size
- Drum configuration
- Drive system
- Brake type
- Control method
- Deck dimensions
- Paint system
- Classification requirements
OEM and project-based manufacturing are available.
How it works:From Inquiry to Delivery
NYBON Marine follows a clear project process to ensure efficient communication and reliable delivery.
- Receive your inquiry.
- Review technical requirements.
- Recommend a suitable solution.
- Confirm drawings and specifications.
- Production.
- Factory testing.
- Packaging and shipment.
- After-sales technical support.
Inquiry→Engineering Review→Quotation→Production→Testing→Delivery
Manufacturing & Quality Control
Every anchor winch is inspected throughout production.
Quality control includes:
- Raw material inspection
- CNC machining inspection
- Welding inspection
- Assembly inspection
- Load testing
- Final inspection before shipment
Why Choose NYBON Marine?
- Professional marine equipment manufacturer
- Customized engineering solutions
- Experienced technical team
- Strict quality control
- Global export experience
- OEM & ODM support
- Fast technical response
Frequently Asked Questions
What is the difference between an anchor winch and a windlass?
A windlass is primarily designed for handling anchors and anchor chains, while the term “anchor winch” is often used more broadly to describe anchoring systems. Depending on vessel design, the two terms may overlap.
Can the anchor winch be customized?
Yes. Capacity, chain size, drive type, control system, and installation dimensions can all be customized.
Which drive system is better?
Electric anchor winches are ideal for general commercial vessels, while hydraulic systems are preferred for offshore and heavy-duty applications.
Do you provide classification certificates?
Yes. Products can be supplied with CCS, ABS, DNV, BV, LR and other certifications upon request.
How can I choose the correct anchor winch?
Provide your vessel type, anchor weight, chain size and preferred drive system. Our engineering team will recommend the most suitable solution.
