Marine Mooring Winch
Reliable Mooring Winches for Safe Vessel Berthing
A mooring winch is an essential deck machine used for securing vessels safely during berthing, loading, unloading, and offshore operations.
NYBON Marine manufactures electric and hydraulic mooring winches designed for cargo ships, offshore vessels, tugboats, terminals and marine projects.
With customizable pulling capacity, drum configuration and control systems, our mooring winches provide reliable rope handling performance under different marine conditions.
What Is a Mooring Winch?
A mooring winch is a mechanical device used to control mooring ropes and secure vessels to docks, terminals or offshore structures.
During vessel operations, mooring winches help:
- Adjust vessel position
- Control mooring lines
- Maintain safe distance from the berth
- Improve operational efficiency
Mooring winches are widely installed on:
- Container ships
- Bulk carriers
- Tankers
- Offshore vessels
- Tugboats
- Ferries
- Marine terminals

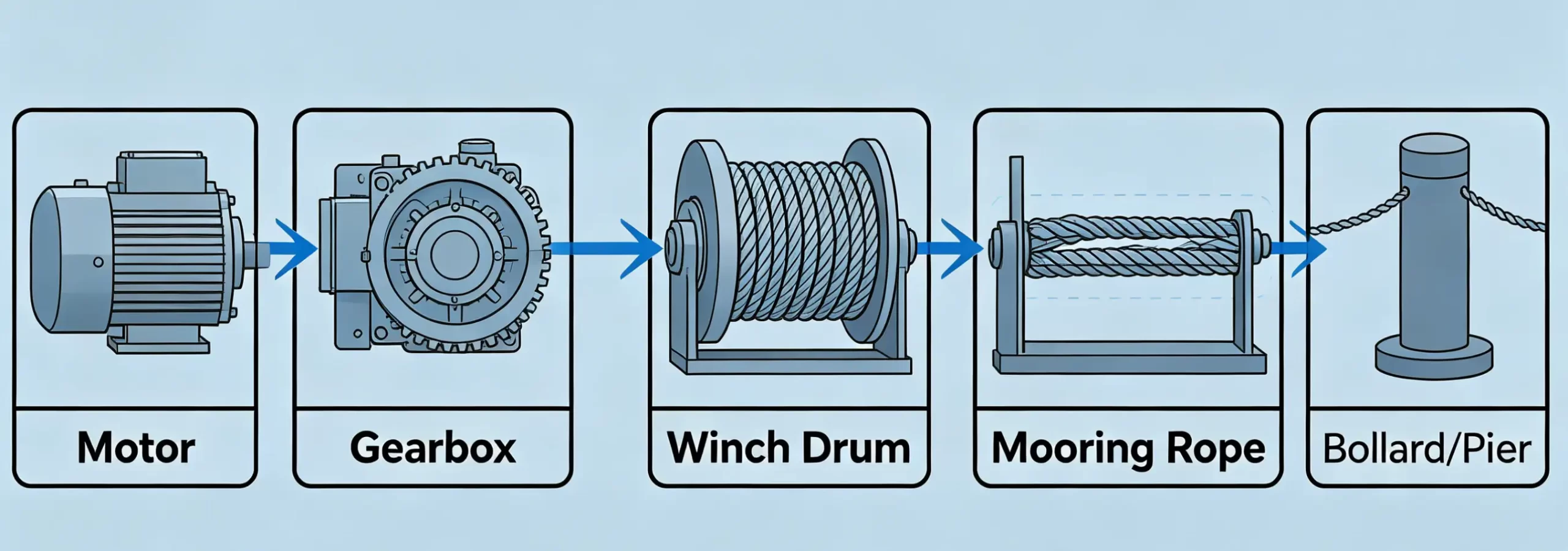

How Does a Mooring Winch Work?
A marine mooring winch operates by rotating the drum to release or retrieve mooring ropes.
Basic operation:
Motor → Gearbox→ Winch Drum→ Mooring Rope→ Bollard / Pier
The winch controls rope tension through braking systems and optional automatic tension control functions.
Main Components of a Mooring Winch
Winch Drum
Stores and controls mooring ropes during vessel operations. Available configurations:
- Single drum
- Double drum
- Split drum
Brake System
Provides safe holding force and prevents uncontrolled rope release. Options:
- Manual brake
- Hydraulic brake
- Automatic brake system
Gearbox
Transfers motor power efficiently and provides stable operation.
Electric or Hydraulic Motor
Available according to vessel power systems and operating conditions.
Control System
Supports:
- Local control
- Remote control
- PLC control
- Automatic tension control
Mooring Winch Applications
Commercial Ships-Used for: Berthing, Loading operations, Port handling
Examples: Container vessels, Bulk carriers, Tankers
Mooring winches help maintain vessel position safely during cargo handling.
Offshore Platforms—Used for: Offshore mooring, Floating structures, Marine engineering projects
Tugboats and Workboats
Provide reliable rope handling during marine operations.
Types of Mooring Winches
Electric Mooring Winch—Suitable for: Commercial vessels, Ports, Shipyards
Advantages: Simple maintenance, Stable operation, Cost-effective
Hydraulic Mooring Winch—Designed for: Offshore applications, Heavy-duty operation, Harsh environments
Advantages: High torque, Continuous operation, Flexible installation
Automatic Tension Mooring Winch—Advanced solution for applications requiring constant rope tension.
Features: Automatic adjustment, Improved safety, Reduced crew workload
Technical Specifications of Mooring Winch
NYBON Marine provides different mooring winch configurations according to vessel requirements.The following specifications are typical ranges.
| Rated Line Pull | 5–200 tons |
|---|---|
| Brake Holding Capacity | 20–400 tons |
| Rope Capacity | 100–1500 m |
| Rope Diameter | 20–100 mm |
| Drum Speed | 5–20 m/min |
| Motor Power | 5–150 kW |
| Control System | Local / Remote / PLC / Auto Tension |
Just For Your Trust
How to Select the Right Mooring Winch?
Customized Mooring Winch Solutions
Every vessel and terminal has different mooring requirements.
NYBON Marine provides customized solutions including:
- Drum design
- Pulling capacity
- Rope arrangement
- Brake system
- Motor selection
- Control system
- Installation dimensions
OEM manufacturing is available for shipyards, vessel owners and marine engineering companies.
NYBON Marine follows strict manufacturing procedures to ensure reliable mooring winch performance.
Quality inspection includes:
- Raw material inspection
- Machining inspection
- Welding inspection
- Gearbox inspection
- Assembly inspection
- Load testing
- Final inspection
Mooring Winch Project Process
From initial design to final delivery:
- Project requirement review
- Technical solution proposal
- Drawing confirmation
- Manufacturing
- Factory testing
- Packaging
- Shipment
Why Choose NYBON Marine Mooring Winches?
Marine Equipment Manufacturer
We specialize in marine winches and deck equipment.
Customized Engineering
Solutions are designed according to project requirements.
Reliable Performance
Products are manufactured with strict quality control.
Global Supply Capability
Supporting customers worldwide with OEM marine equipment.
Frequently Asked Questions
What is a mooring winch used for?
A mooring winch is used to control mooring ropes and secure vessels safely during berthing and marine operations.
What is the difference between an anchor winch and a mooring winch?
An anchor winch is primarily used to handle anchors, while a mooring winch is designed to control ropes securing vessels to docks or offshore structures.
Can you provide automatic tension mooring winches?
Yes. NYBON Marine can provide mooring winches with automatic tension control systems according to project requirements.
What drive options are available?
We provide electric and hydraulic mooring winches depending on vessel conditions and customer requirements.
Can the mooring winch be customized?
Yes. Capacity, drum design, rope arrangement, and control systems can be customized.
