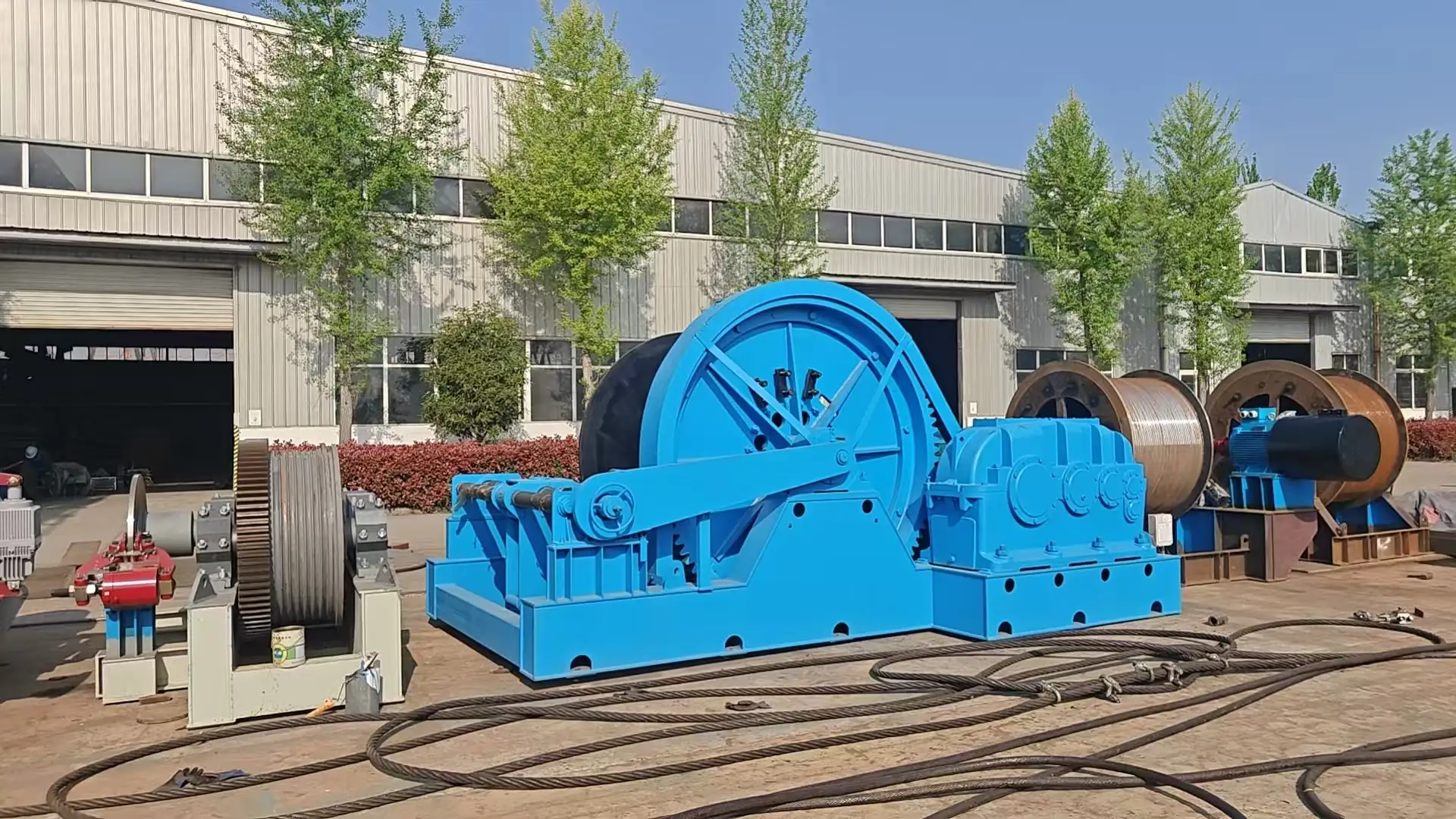

Marine Slipway Winch
Reliable Slipway Winches for Ship Launching Operations
A slipway winch is a specialized marine winch used for ship launching, vessel hauling, and shipyard transportation operations.

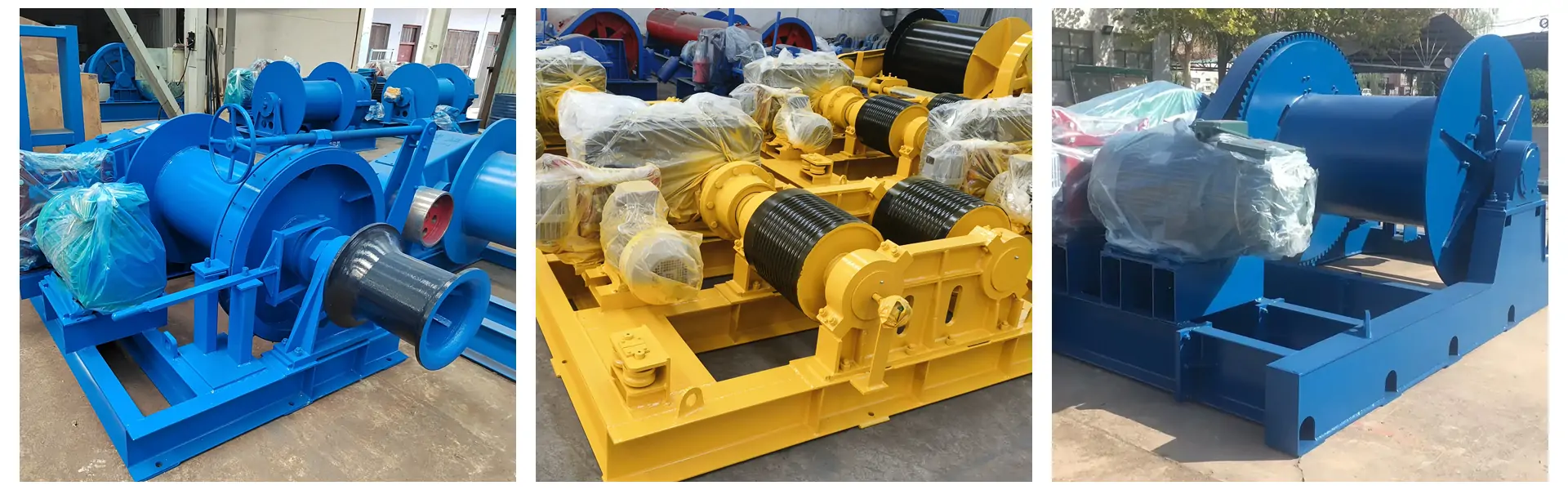

NYBON Marine manufactures heavy-duty slipway winches designed for shipyards, boat builders, and marine engineering projects.
With strong pulling capacity, reliable braking systems and customized configurations, our slipway winches provide safe and efficient solutions for launching and moving vessels.
What Is a Slipway Winch?
A slipway winch is a heavy-duty pulling system installed in shipyards to move vessels along slipways during launching, repairing or maintenance operations.
Unlike conventional marine winches, slipway winches are designed to handle:
- Large pulling loads
- Long-distance movement
- Controlled vessel positioning
- Heavy marine structures
They are commonly used for:
- Ship launching
- Boat hauling
- Ship repair yards
- Marine construction facilities

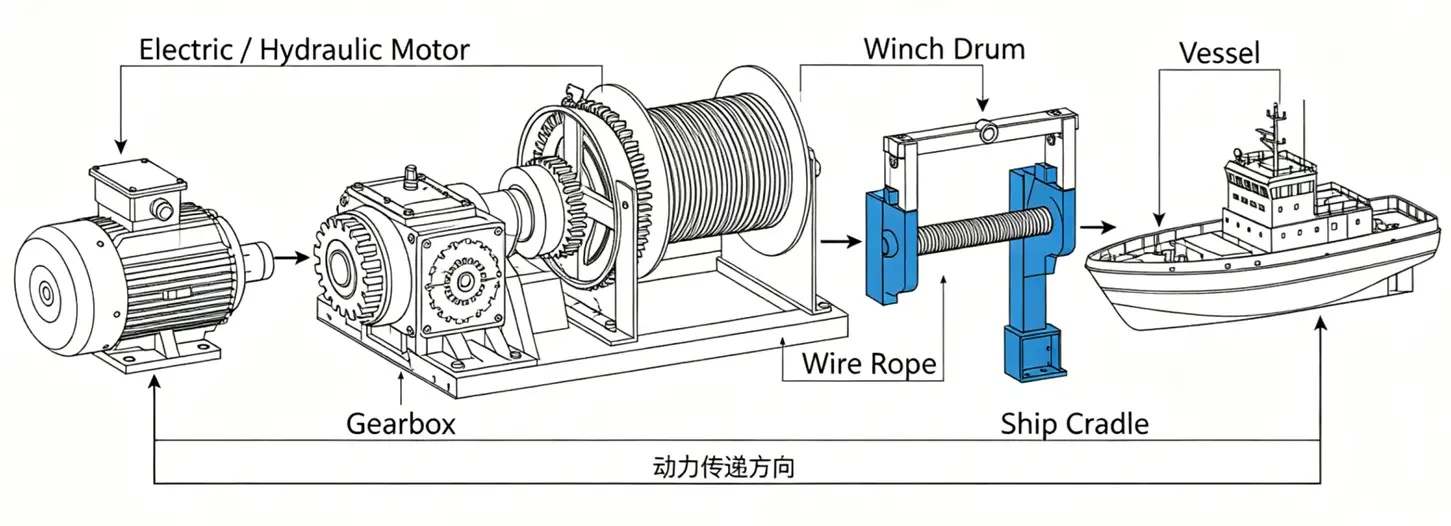

How Does a Slipway Winch Work?
A slipway winch pulls or releases steel wire ropes connected to a vessel cradle or launching system.
Typical operation:
Electric / Hydraulic Motor→Gearbox→Winch Drum→Wire Rope→Ship Cradle→Vessel
Working process:
- The vessel is positioned on a slipway carriage.
- The wire rope is connected to the cradle.
- The winch provides controlled pulling force.
- The vessel is moved safely along the slipway.
Main Components of a Slipway Winch
Winch Drum
Designed for large diameter wire rope storage and high pulling loads.
Drive System
Available:
- Electric drive
- Hydraulic drive
- Diesel Drive
Brake System
Ensures safe stopping and holding during operation. Features:
- Reliable holding force
- Controlled movement
- Enhanced safety
Gear Reduction System
Provides high torque output for vessel movement.
Control System
Optional control methods:
- Local control
- Remote control
- PLC control
- Constant tension control
Slipway Winch Applications
Ship Launching—Slipway winches are widely used in shipyards for launching newly built vessels. Applications: Small vessels, Workboats, Fishing boats, Special vessels
Ship Repair and Maintenance—Used for:
-
Vessel pulling
-
Position adjustment
-
Dry dock operations
Boat Builders—Suitable for: Yacht builders, Small ship manufacturers, Marine workshops
Marine Engineering Facilities
Provide reliable pulling solutions for heavy marine structures
Types of Slipway Winches

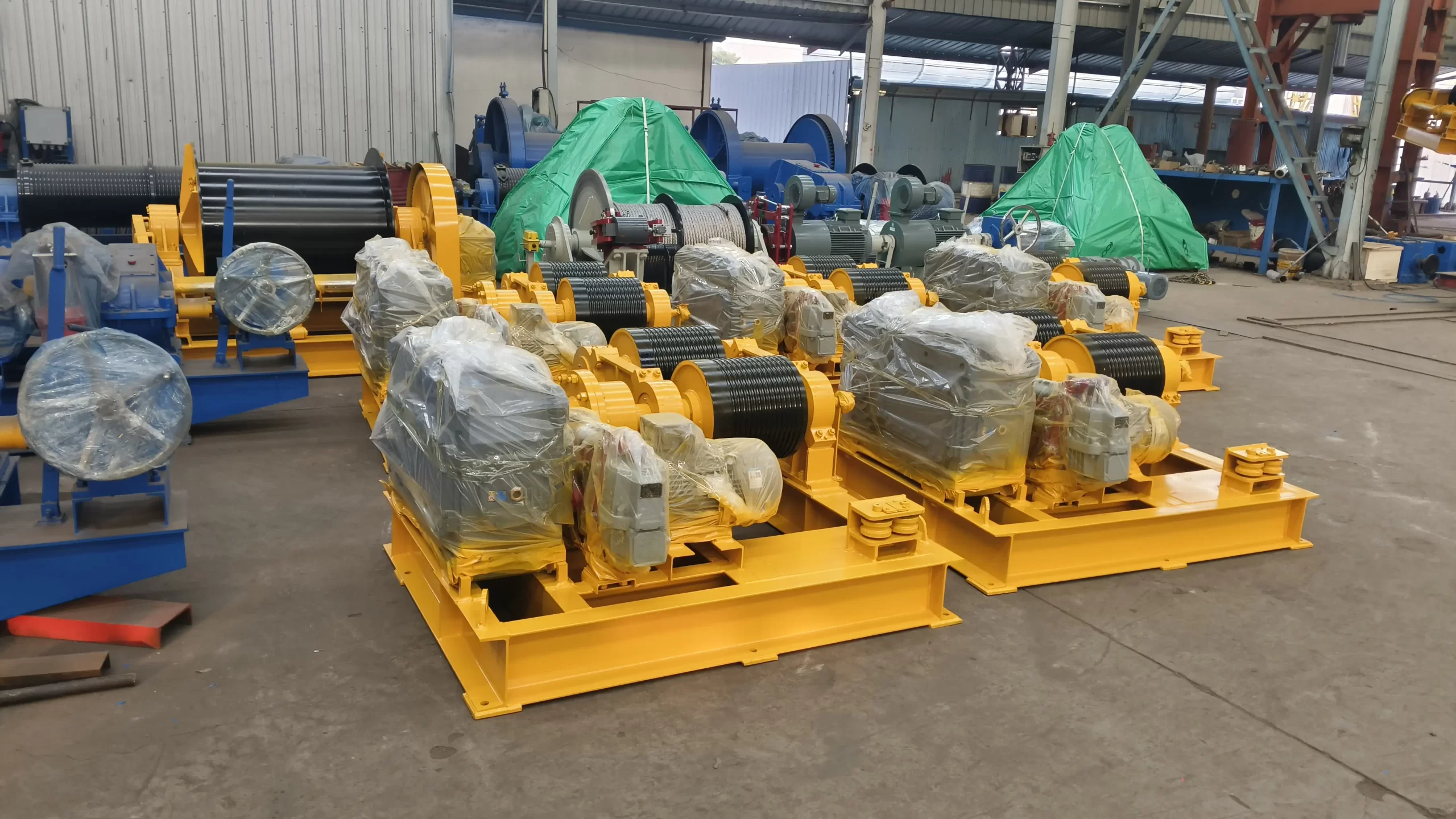

Electric Slipway Winch—Suitable for shipyards with a stable power supply.Advantages: Easy maintenance, Stable performance, Lower operating cost
Hydraulic Slipway Winch
Recommended for heavy-duty shipyard applications.Advantages: High torque, Smooth operation, Suitable for harsh environments
Double Drum Slipway Winch
Designed for applications requiring: Multiple pulling points, Balanced vessel movement, Higher control accuracy
Technical Specifications of Slipway Winch
The following specifications represent typical ranges. Customized solutions are available according to vessel size, slipway design and project requirements.
| Rated Pulling Capacity | 10–500 tons |
|---|---|
| Wire Rope Capacity | 100–2000 m |
| Wire Rope Diameter | 20–120 mm |
| Drum Type | Single / Double Drum |
| Line Speed | 3–15 m/min |
| Motor Power | 15–300 kW |
| Control System | Local / Remote / PLC |
Just For Your Trust
How to Select the Right Slipway Winch?
Customized Slipway Winch Solutions
Every shipyard has different launching conditions.
NYBON Marine provides customized slipway winches based on:
- Vessel size
- Launching method
- Slipway structure
- Pulling distance
- Wire rope requirements
- Control system
Our engineering team can provide complete technical solutions for ship launching projects.
NYBON Marine ensures every slipway winch meets demanding shipyard requirements.
Quality control includes:
- Steel material inspection
- Welding inspection
- Gearbox testing
- Drum inspection
- Brake testing
- Load testing
- Final inspection
Why Choose NYBON Marine Slipway Winches?
Heavy-Duty Manufacturing Capability
Designed for demanding shipyard operations.
Customized Engineering Support
Solutions developed according to launching requirements.
Reliable Safety Performance
Strong structures and tested components ensure safe operation.
Complete Shipyard Solutions
Supporting ship launching, hauling, and marine engineering projects.
Frequently Asked Questions
What is a slipway winch used for?
A slipway winch is used for moving, launching, and hauling vessels along shipyard slipways.
What is the difference between a slipway winch and a towing winch?
A towing winch is designed for pulling vessels during marine operations, while a slipway winch is designed for controlled movement of vessels on land-based shipyard launching systems.
Can slipway winches be customized?
Yes. Pulling capacity, drum size, rope length, motor power and control systems can be customized.
What capacity slipway winch do I need?
The required capacity depends on vessel weight, cradle weight, slipway angle, and safety requirements.
Do you provide complete ship launching solutions?
Yes. NYBON Marine can provide customized winch solutions for shipyards and vessel launching projects.
