Marine Towing Winch
Heavy-Duty Towing Winches for Marine Operations
A towing winch is a critical deck machine designed for controlled pulling, towing, and positioning operations in marine environments.
NYBON Marine manufactures heavy-duty towing winches for tugboats, offshore support vessels, shipyards and marine engineering projects.
Our towing winches are available with electric or hydraulic drive systems and can be customized with different rope capacities, brake systems and control solutions to meet various towing requirements.
What Is a Towing Winch?
A marine towing winch is a mechanical device used to control towing ropes or wires during ship towing and marine operations.
Unlike standard winches, towing winches are designed to handle:
- High pulling loads
- Continuous operation
- Dynamic marine conditions
- Controlled rope release and recovery
They are commonly installed on:
- Tugboats
- Offshore support vessels
- Salvage vessels
- Workboats
- Marine engineering vessels
A reliable towing winch improves operational safety and provides precise control during towing operations.

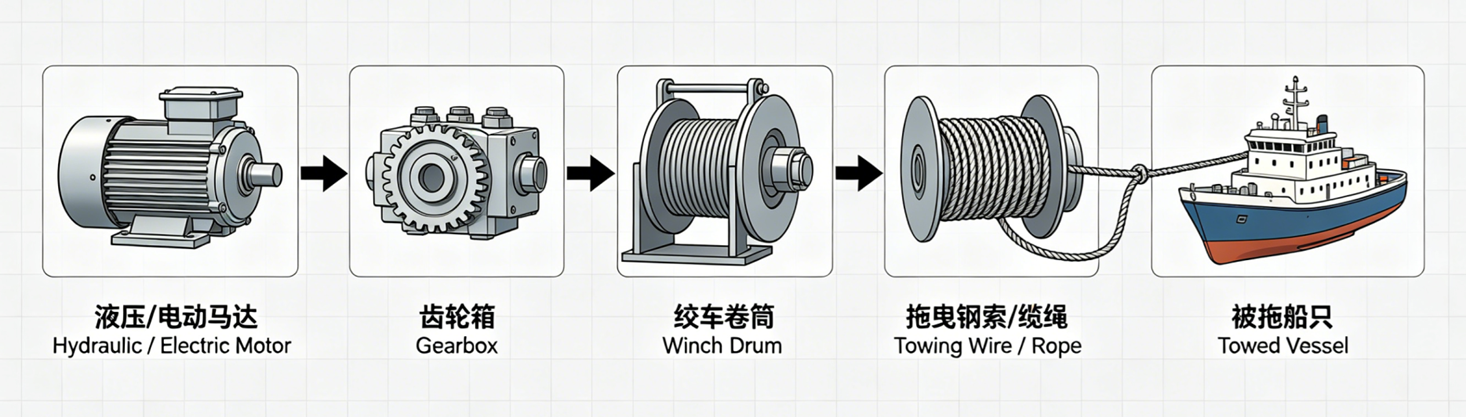

How Does a Towing Winch Work?
A towing winch operates by rotating a drum to pay out or retrieve towing wire or rope.
Typical operation:
Hydraulic / Electric Motor→Gearbox →Winch Drum→Towing Wire / Rope→Towed Vessel
During operation:
- The towing wire is released from the drum.
- The vessel begins towing.
- The winch controls rope tension.
- The wire is recovered after operation.
Advanced systems can include constant-tension control to maintain a stable towing force.
Main Components of a Towing Winch
Winch Drum
The drum stores and controls towing wire or synthetic rope. Available configurations:
- Single drum
- Double drum
- Split drum
Brake System
The brake system is an important component of a towing winch. It provides safe holding force, Controlled release, Emergency stopping. Options: Hydraulic brake, Mechanical brake, Automatic brake system
Gearbox
Provides high torque transmission for heavy pulling operations.
Electric or Hydraulic Motor
Available:
- Electric drive
- Hydraulic drive
- Diesel Drive
Control System
Optional control methods:
- Local control
- Remote control
- PLC control
- Constant tension control
Towing Winch Applications
Tugboats—Towing winches are widely used for:
-
Ship assistance
-
Harbor towing
-
Vessel positioning
Offshore Support Vessels—Used for:
-
Platform support
-
Marine construction
-
Offshore transportation
Shipyards— used for:
-
Vessel launching
-
Ship movement
-
Marine transportation
Salvage and Marine Engineering
Provides reliable pulling capability for special marine operations.
Types of Towing Winches
Hydraulic Towing Winch—Designed for heavy-duty marine applications. Advantages: High torque output, Smooth operation, Suitable for continuous working conditions
Applications: Tugboats, Offshore vessels, Marine engineering projects
Electric Towing Winch
Suitable for vessels with stable electrical systems.Advantages: Simple maintenance, Easy operation, Lower operating cost
Constant Tension Towing Winch
Advanced solution for applications requiring stable rope tension.Features: Automatic tension adjustment, Improved safety, Reduced operator workload
Technical Specifications of Towing Winch
The following specifications represent typical ranges. Customized designs are available according to vessel requirements and towing conditions.
| Rated Pulling Capacity | 10–300 tons |
|---|---|
| Brake Holding Capacity | 30–600 tons |
| Rope Capacity | 100–2000 m |
| Wire Rope Diameter | 20–120 mm |
| Drum Speed | 5–25 m/min |
| Motor Power | 10–300 kW |
| Control System | Local / Remote / PLC / Constant Tension |
Just For Your Trust
How to Select the Right Towing Winch?
Customized Towing Winch Solutions
Every towing project has different requirements.NYBON Marine provides customized towing winches based on:
- Vessel type
- Required pulling force
- Rope length
- Drum design
- Brake capacity
- Control system
- Installation space
OEM manufacturing is available for: shipyards, vessel owners,Vessel owners, Marine engineering companies
NYBON Marine applies strict quality procedures during towing winch production.
Quality inspection includes:
- Material inspection
- Machining accuracy inspection
- Welding inspection
- Gearbox testing
- Brake testing
- Load testing
- Final inspection
From Design to Delivery
Our towing winch project process:
- Customer requirement analysis
- Technical solution design
- Drawing confirmation
- Manufacturing
- Factory testing
- Surface treatment
- Packaging and shipment
Why Choose NYBON Marine Towing Winches?
Heavy-Duty Marine Experience
Designed for demanding marine working conditions.
Customized Engineering
Solutions developed according to project requirements.
Reliable Safety Performance
Strong braking systems and tested components.
Complete Marine Equipment Supply
From winches to marine fittings, NYBON provides integrated marine solutions.
Frequently Asked Questions
What is a towing winch used for?
A towing winch is used to control towing ropes or wires during ship towing, offshore operations, and marine engineering projects.
What is the difference between a towing winch and a mooring winch?
A towing winch is designed for pulling and towing operations, while a mooring winch is mainly used for securing vessels at docks or terminals.
Are towing winches available with hydraulic drive?
Yes. Hydraulic towing winches are commonly used for heavy-duty marine operations because they provide high torque and reliable continuous operation.
Can the towing winch be customized?
Yes. Pulling capacity, rope length, drum size, brake system, and control method can be customized.
Do you provide towing winches for tugboats?
Yes. NYBON Marine provides towing winch solutions for tugboats, offshore vessels, and marine engineering vessels.
