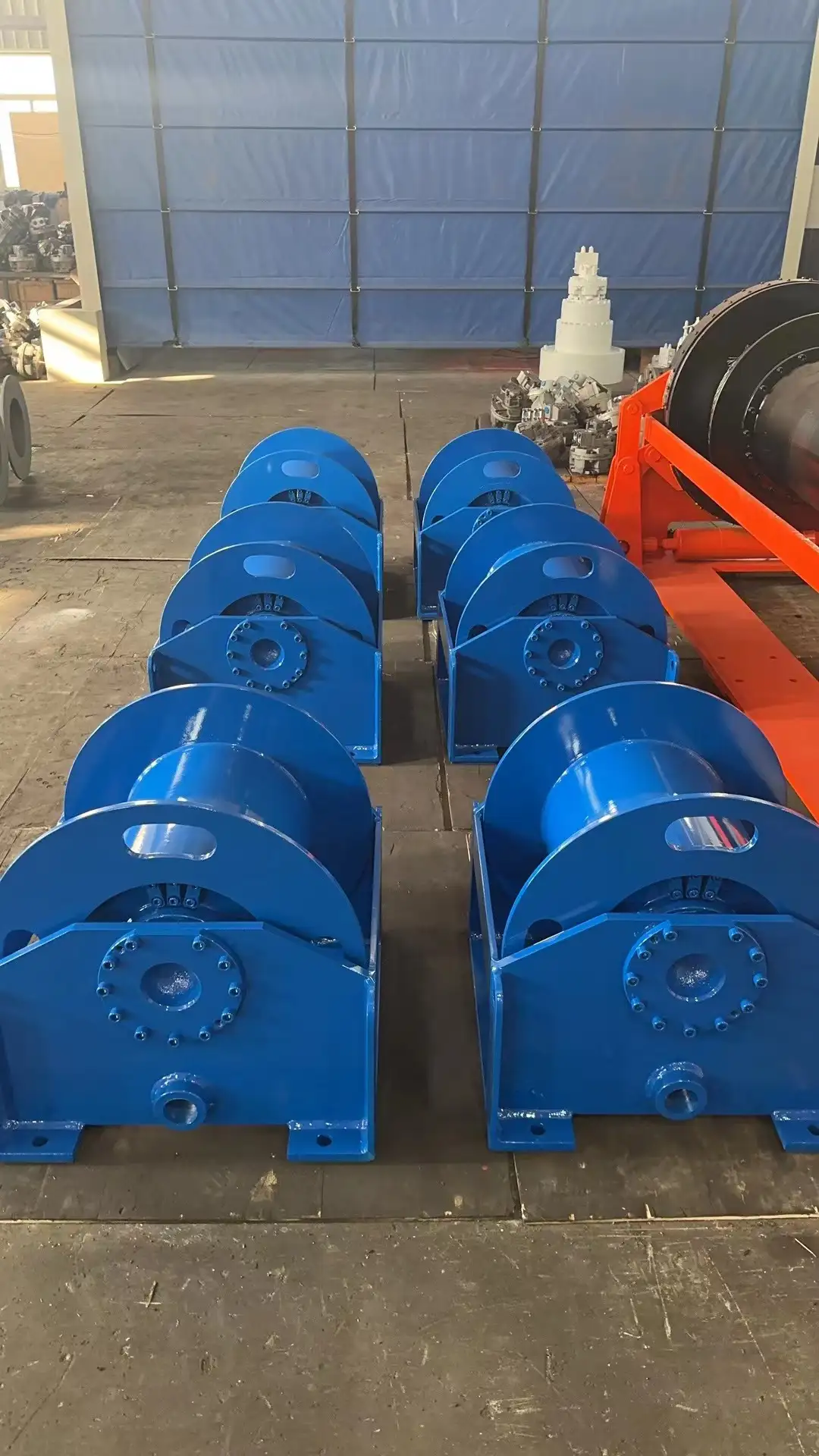

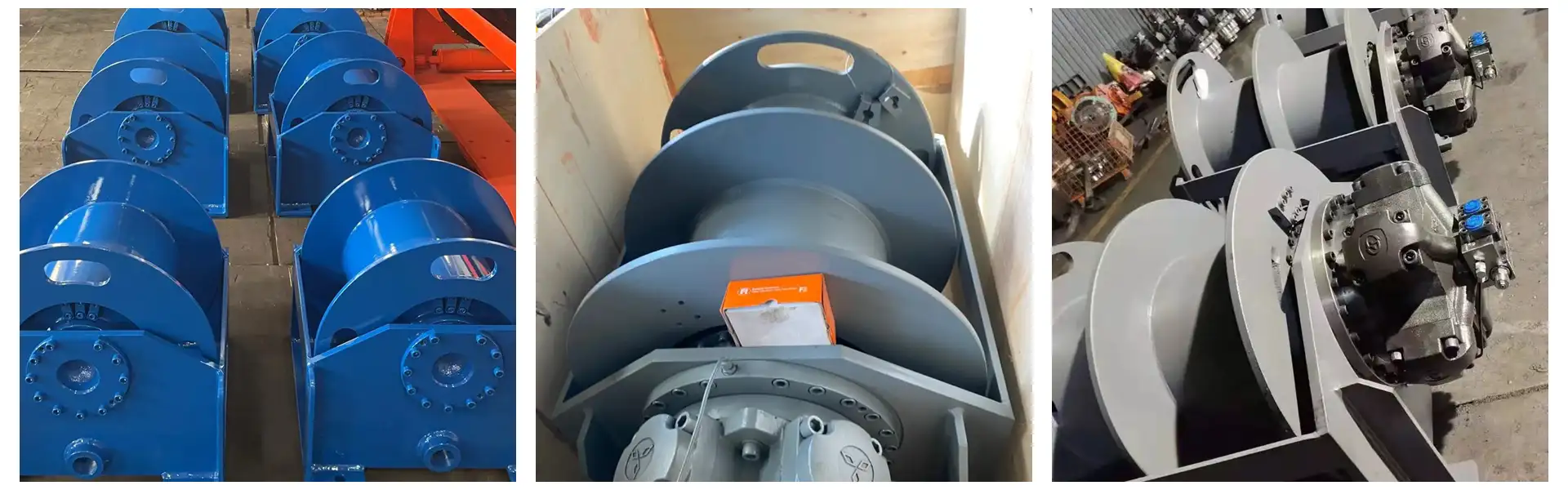

Marine Ramp Winch
Reliable Ramp Winches for Marine Loading Operations
A ramp winch is a specialized marine winch used for operating vessel ramps, loading platforms, and access systems.
NYBON Marine manufactures reliable ramp winches for RoRo vessels, ferries, landing craft, and marine facilities.
Designed for safe and controlled ramp movement, our winches provide strong pulling capacity, smooth operation, and customized solutions according to vessel design and operating requirements.
What Is a Ramp Winch?
A ramp winch is a mechanical device used to raise, lower, or control marine ramps during vessel loading and unloading operations.
It is commonly installed on:
- RoRo vessels
- Ferries
- Landing craft
- Workboats
- Marine terminals
Ramp winches help control:
- Vehicle ramps
- Stern ramps
- Bow doors
- Access platforms
A properly designed ramp winch ensures safe cargo transfer and efficient vessel operations.
How Does a Ramp Winch Work?
A ramp winch operates by winding or releasing wire rope connected to a vessel ramp system.

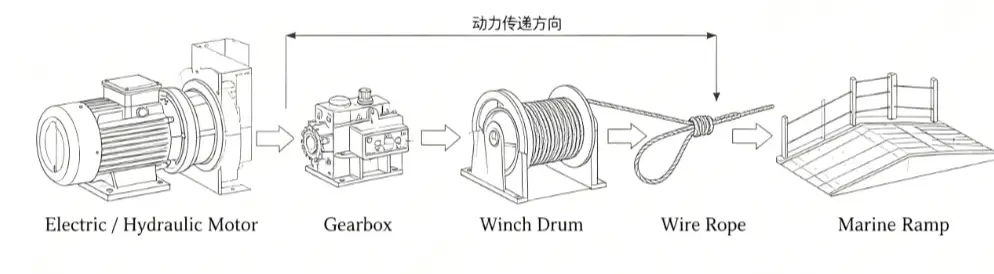

Working principle:
Electric / Hydraulic Motor→ Gearbox→Winch Drum→Wire Rope→Marine Ramp
Operation process:
- The motor drives the gearbox.
- The drum rotates to release or retrieve wire rope.
- Ramp position is adjusted.
- The brake system holds the ramp securely.
Main Components of a Ramp Winch

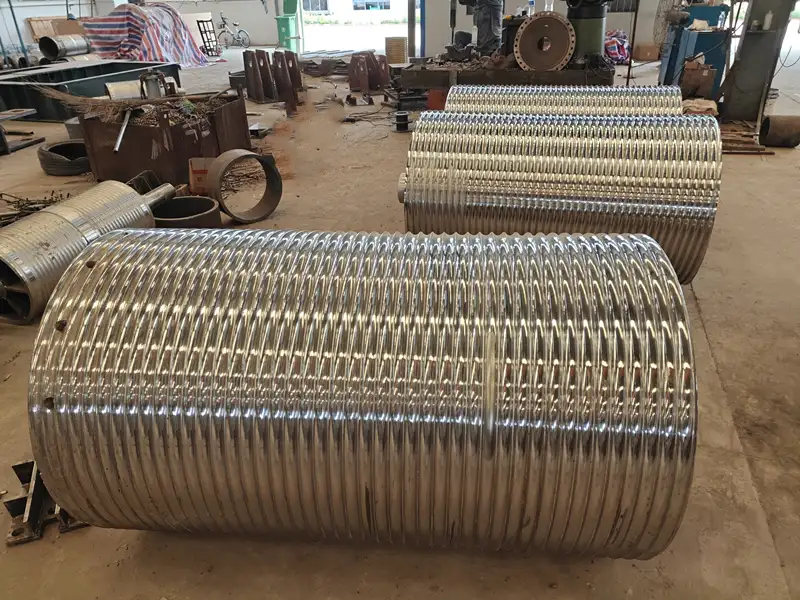

Winch Drum
Designed for reliable wire rope handling.Features:
- High-strength steel construction
- Large rope capacity
- Corrosion protection
Drive System

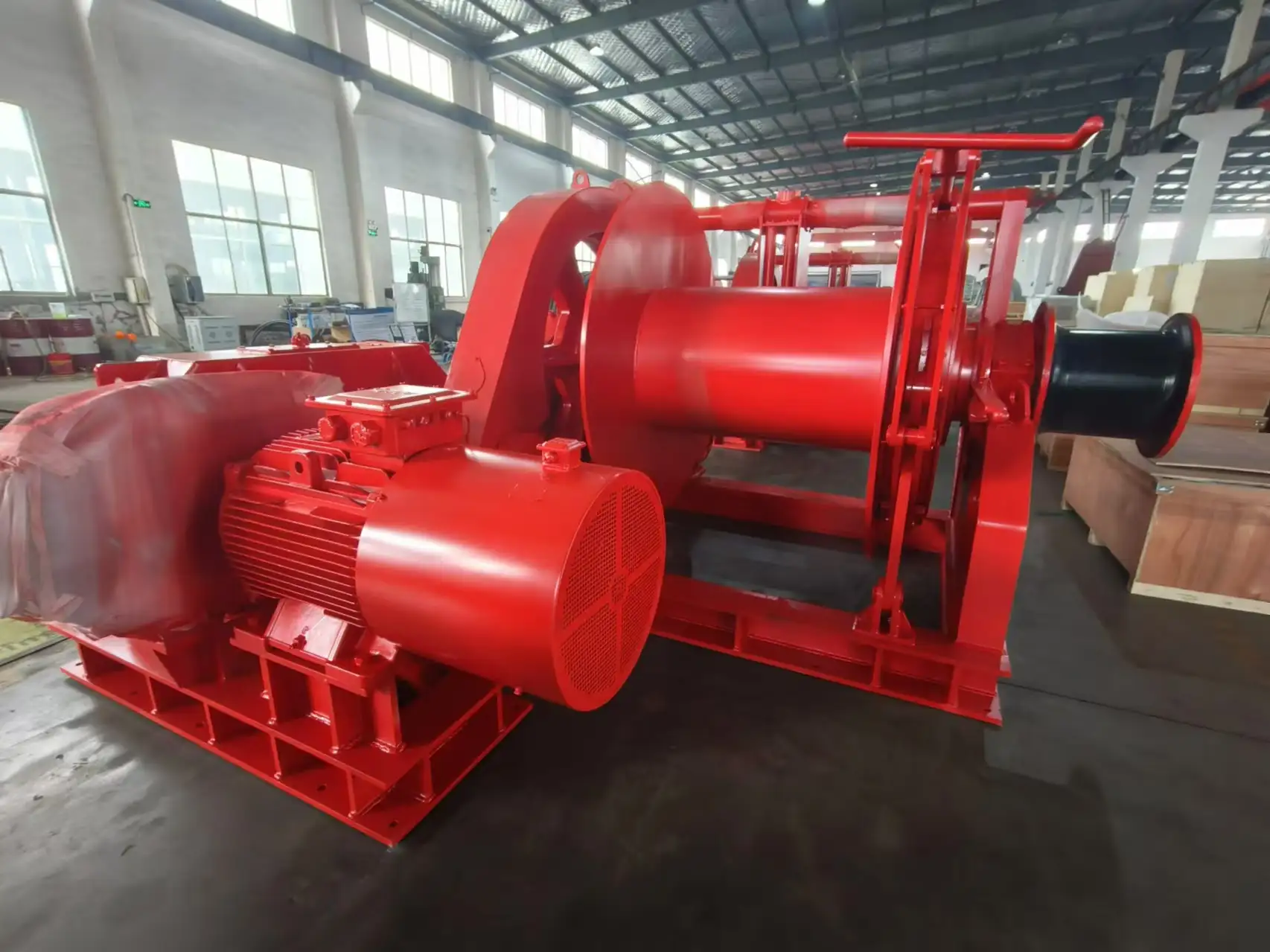

Electric Drive—Suitable for: Ferries & Commercial vessels.Advantages: Simple operation & Easy maintenance
Hydraulic Drive—Suitable for: Heavy-duty marine applications & Harsh environments.Advantages: High torque & Flexible installation

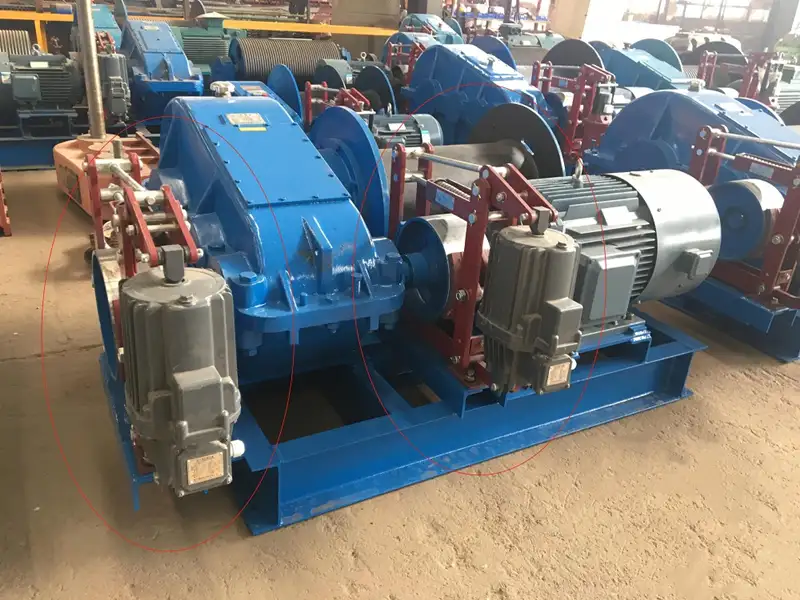

Brake System
The brake system is an important component of a towing winch. It provides safe holding force, Controlled release, Emergency stopping. Options: Hydraulic brake, Mechanical brake, Automatic brake system
Gearbox
Provides high torque transmission for heavy pulling operations.
Control System
Optional control methods:
- Local control
- Remote control
- PLC control
Ramp Winch Applications
RoRo Vessels—Ramp winches are widely used for:
- Vehicle loading
- Cargo transfer
- Stern ramp operation
Ferries—Used for:
- Passenger access ramps
- Vehicle decks
- Loading platforms
Landing Craft—Provide reliable ramp operation for:
- Military vessels
- Workboats
- Transport vessels
Marine Terminals—Used for:
- Floating platforms
- Loading systems
- Marine access equipment
Types of Ramp Winches
Electric Ramp Winch—Suitable for: Ferries, Commercial vessels, Indoor or protected environments
Advantages: Low maintenance, Easy operation, Reliable performance
Hydraulic Ramp Winch—Recommended for: Heavy-duty vessels, Offshore environments, Continuous operation
Advantages: High power density, Smooth control, Strong adaptability
Double Drum Ramp Winch—Used when: Two lifting points are required, Balanced ramp movement is necessary
Technical Specifications of Ramp Winch
The following specifications represent typical ranges. Customized designs are available according to ramp weight, vessel structure, and operation requirements.
| Rated Pulling Capacity | 5–150 tons |
|---|---|
| Wire Rope Capacity | 50–1000 m |
| Wire Rope Diameter | 16–80 mm |
| Drum Type | Single / Double Drum |
| Line Speed | 3–20 m/min |
| Motor Power | 5–150 kW |
| Control System | Local / Remote / PLC |
Just For Your Trust
How to Select the Right Ramp Winch?
Customized Ramp Winch Solutions
Every vessel has different ramp dimensions and operating conditions.
NYBON Marine provides customized ramp winches according to:
- Ramp weight
- Lifting distance
- Rope length
- Installation space
- Drive system
- Control requirements
OEM manufacturing is available for shipyards and vessel operators.
NYBON Marine applies strict quality control throughout ramp winch production.
Inspection includes:
- Raw material inspection
- Machining inspection
- Welding inspection
- Gearbox testing
- Brake inspection
- Load testing
- Final inspection
From Design to Delivery
Our towing winch project process:
- Customer requirement analysis
- Technical solution design
- Drawing confirmation
- Manufacturing
- Factory testing
- Surface treatment
- Packaging and shipment
Why Choose NYBON Marine Ramp Winches?
Marine Equipment Expertise
Professional manufacturer of marine winches and deck equipment.
Customized Design Capability
Solutions developed according to vessel requirements.
Reliable Operation
Designed for safe and stable marine service.
OEM Manufacturing Support
Supporting shipyards, vessel owners, and engineering companies worldwide.
Frequently Asked Questions
What is a ramp winch used for?
A ramp winch is used to operate marine ramps on vessels such as RoRo ships, ferries, and landing craft.
What is the difference between a ramp winch and a slipway winch?
A slipway winch is mainly used for ship launching and vessel movement in shipyards, while a ramp winch is designed for controlling vessel ramps during loading operations.
Can ramp winches be customized?
Yes. NYBON Marine can customize pulling capacity, drum size, rope length, drive system, and control method.
Are hydraulic ramp winches available?
Yes. Hydraulic ramp winches are available for heavy-duty and harsh marine environments.
What information is needed for ramp winch selection?
Customers should provide:
-
Vessel type & Ramp weight
-
Required lifting distance & Operating conditions
Our engineers can recommend a suitable solution.
