Marine Vertical Capstan
Compact Vertical Capstans for Efficient Mooring Operations
A vertical capstan is a compact deck machine designed for rope handling, mooring, and light lifting operations on various marine vessels.
NYBON Marine manufactures customized vertical capstans with electric or hydraulic drive systems, offering reliable performance, space-saving installation, and easy operation for commercial and offshore applications.
What Is a Vertical Capstan?
A vertical capstan is a rotating drum installed in a vertical position to pull ropes or cables during mooring and deck operations.
Compared with traditional winches, vertical capstans offer:
- Compact footprint
- Simple structure
- Easy rope handling
- Flexible installation
They are widely used on:
- Tugboats
- Fishing vessels
- Barges
- Workboats
- Small commercial ships

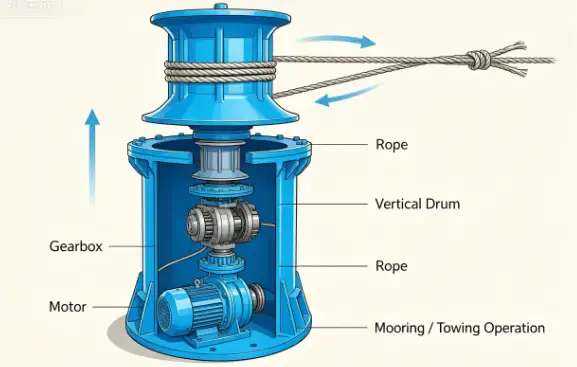

How Does a Vertical Capstan Work?
The motor drives the vertical drum through a gearbox. The rope wraps around the drum, and friction generates the pulling force required for mooring or towing operations.
Typical operation: Motor→Gearbox→Vertical Drum→Rope→Mooring Operation
Main Components
Vertical Drum
Provides smooth rope handling with excellent grip.
Drive System
Available with: Electric drive, Hydraulic drive
Brake & Control
Ensures safe and reliable operation.
Advantages of Vertical Capstans
Vertical capstans are widely used in marine applications because of their compact design and efficient rope handling. Compared with larger mooring equipment, they require less deck space while providing reliable pulling performance for everyday marine operations. Their simple structure also makes installation and routine maintenance easier.
Available in electric or hydraulic configurations, vertical capstans can be adapted to different vessel types and working environments, making them a practical and cost-effective solution for shipyards, ports, and commercial vessels.
Nybon Vertical Capstan Winch Applications
Vessel Mooring
Used for daily mooring operations on commercial vessels.
Tugboats
Provide efficient rope handling during towing assistance.
Fishing Vessels
Suitable for anchor handling and deck operations.
Harbor Facilities
Used on docks and small marine terminals.
Types of Vertical Capstans
Electric Vertical Capstan
Ideal for commercial vessels requiring simple operation.
Advantages:
- Easy installation
- Low maintenance
- Stable performance
Hydraulic Vertical Capstan
Recommended for demanding marine environments.
Advantages:
- High torque
- Continuous operation
- Excellent durability
Just For Your Trust
How to Select the Right Vertical Capstan?

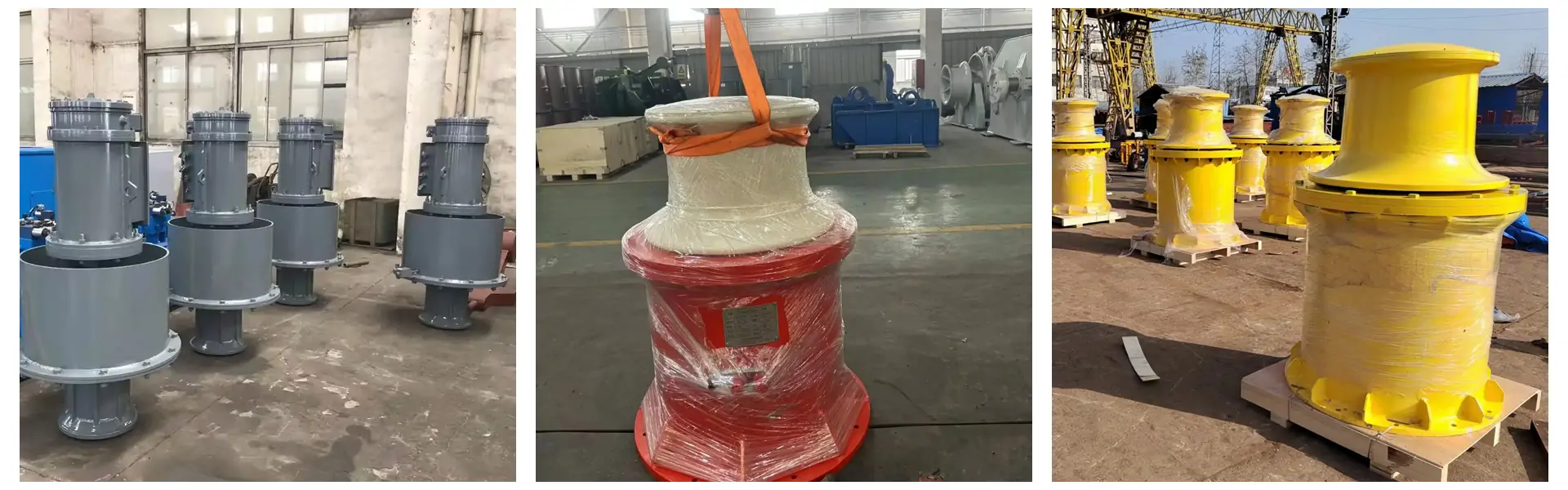

Customized Vertical Capstan Solutions
NYBON Marine supplies customized vertical capstans based on:
- Pulling capacity
- Drum dimensions
- Installation height
- Drive system
- Marine protection requirements
OEM manufacturing is available for shipyards and equipment distributors.
Every vertical capstan undergoes:
- Material inspection
- Precision machining
- Assembly inspection
- Load testing
- Final inspection
Why Choose NYBON Marine?
- Professional marine winch manufacturer
- Customized engineering support
- Strict quality management
- Reliable OEM production
- Global export experience
- Marine Fittings Available
Frequently Asked Questions
What is a vertical capstan used for?
A vertical capstan is mainly used for mooring, rope handling, and light towing operations.
Can the capstan be customized?
Yes. Capacity, drum size, drive system, and mounting dimensions can all be customized.
Electric or hydraulic?
Electric capstans are suitable for general applications, while hydraulic models are recommended for heavy-duty marine environments.
Which vessels use vertical capstans?
They are commonly installed on tugboats, fishing vessels, barges, and commercial ships.
Do you provide OEM manufacturing?
Yes. OEM and customized production are available.
